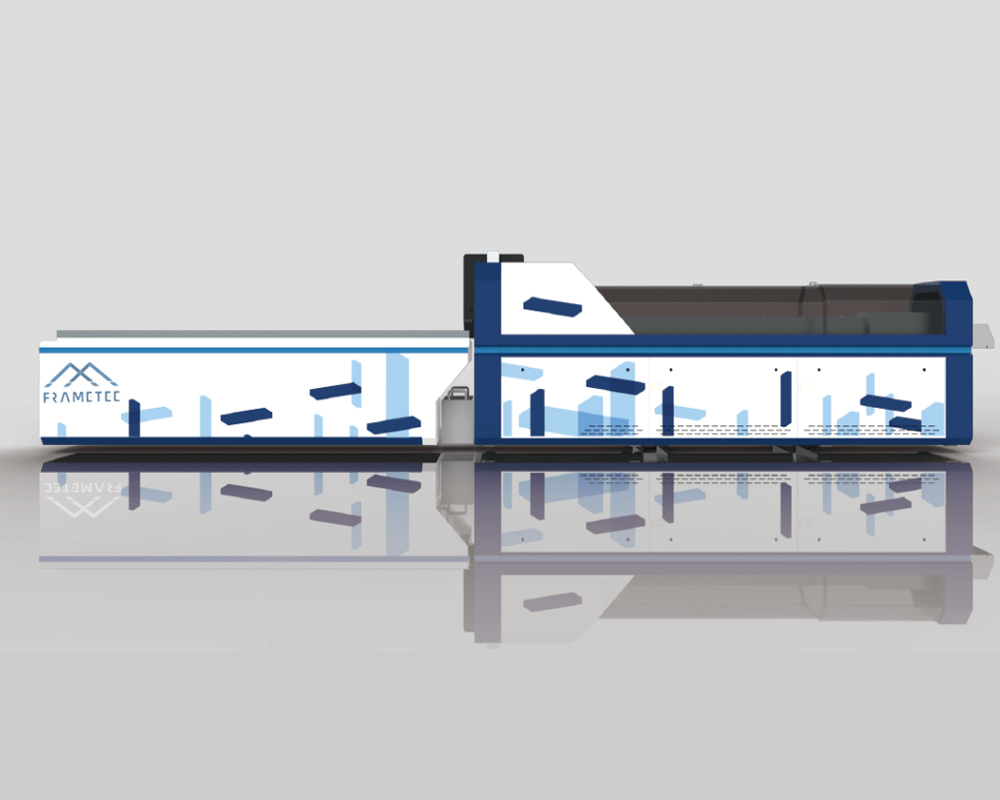

The SFS-C89-1.2 is our classical entry level model of Frametec LGSF machine manufacturing system. As our 5th generation classical light steel frame machine, SFS-C89-1.2 is with a perfect performance in high production speed, greater flexibility and high stability, which is suitable for 1-3 stories residential and light commercial projects. Producing profiles from 2.5″ (63mm) to 6″ (150mm) up to 18g (1.20mm) thickness, which can be customized.
With the designing software and control software, the machine can automatic running and saving lots of time in drawing,material reporting, data entry, manufacturing, production record, and correcting all the errors.
Applications: Wall system, floor system and roof system for 1 – 3 level residential, transportable units, modular house, and light commercial construction. Clear span of the roof trusses up to 15m and can be either factory-based or transportable in a mobile factory.
Machine Part
Ⅰ、Specifications
| Profile Shape | C Shape |
| Profile Size | 63mm/ 75mm/ 89mm/ 92mm/ 100mm/ 140mm & etc. |
| Material Thickness | 0.75-1.2 mm, G300-G550 Zinc-Alum Steel Coil |
| Operation System | 21 inches Touchable Screen |
| Production Control System | Self-devoloped Controlling Software |
| Design Software | Vertex BD/ Framebuilder MRD / Strucsoft & etc. |
| Comprehensive Machine Speed | Floor Joists: 300 m/hr, Walls: 700 m/hr，total around 4 tons per shift |
| Punching, Cutting Mould | dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole and shearing |
| Accuracy | ± 0.5 mm |
II. Machine Video
III. C89 Profile details
IV. Applications
V. Why Choose FrameTec
FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
Since 2009, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All Frametec machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Wall Panels, Trusses and Floor Joists in:
- Residential and Commercial buildings
- Steel framed systems for modular & prefabricated buildings
- Walls framed for low and high rise buildings
- Walling, floors, beams, roofing, kitchen & bathroom pods
- Storage, recreational, transportable dwellings
FrameTec, the intelligent manufacturing solution provider for multi-storey prefabricated buildings !
