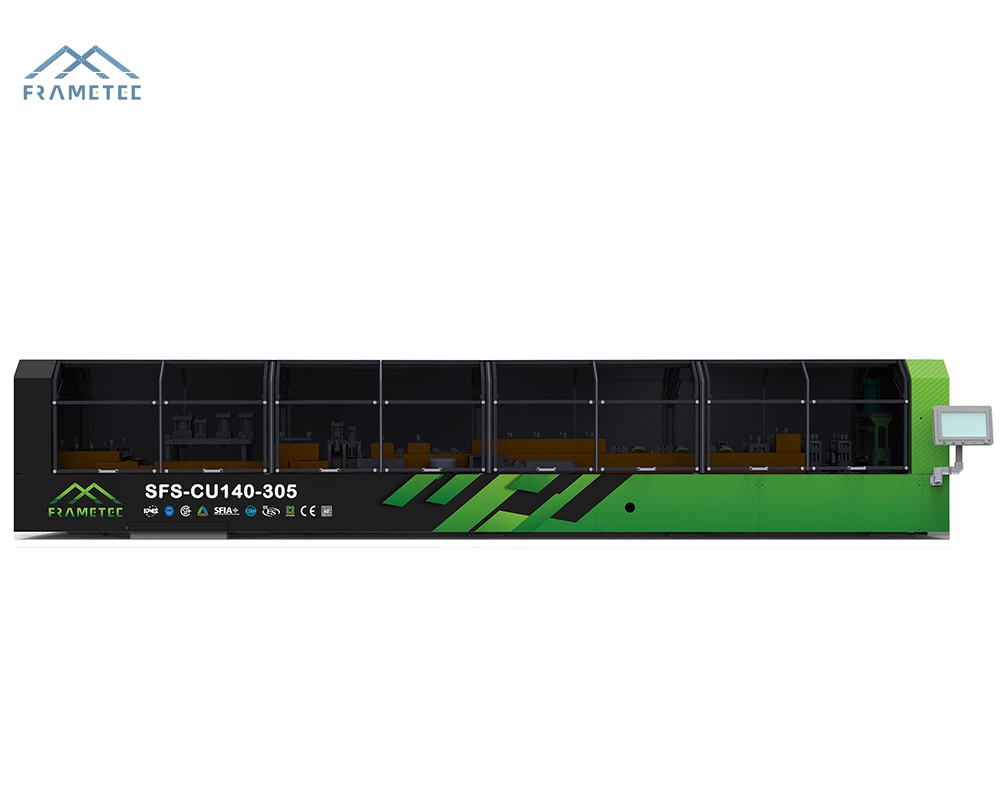

Multi Profile Metal Framing Studs Light Gauge Steel Machine For Wall & Floor Joist, SFS-CU140-305 is called “super light steel frame machine” or “flexible 3D steel framing machine”. Which is truly multi-purpose machine. It allows you to manufacture frames, panels or floor joists – with sections from 140 to 305mm.
Starting from the low cost of investment, a single profile machine can meet the initial needs; but from a professional and long-term point of view, the best choice to match with multi function machine, which is handy for low-rise, multi-storey, interior walls, exterior walls, American standard system, and Australian standard system.
Own it, go where others dare not go Create a height that no one else has reached
Applications: construction walls and floors for 1–6 level residential, light commercial construction, commercial construction and custom building like Solar Panel Frames.
Machine Part
Ⅰ、Specifications
| Profile Shape | C and U |
| Profile Size | 135-305 mm |
| Material Thickness | 1.0-2.5 mm, G300-G450 Zinc-Alum Steel Coil |
| Operation System | 21 inches Touchable Screen |
| Production Control System | Self-devoloped FrameTec LGR1 machine controlling Software |
| Design Software | Vertex BD/ Framebuilder MRD / Strucsoft & etc. |
| Comprehensive Machine Speed | Joists: 500 m/hr Walls: 800 m/hr |
| Max. Machine Speed | 2,150m/hr |
| Punching, Cutting Mould | Fixing tabs, Web hole, Service Hole, Dimple, Web Notch |
| Hole Punching Accuracy | ± 0.5 mm |
II. Machine Video
III. Machine Main Features
| Classical LGS machine models for 10+ years, very stable and with high speed production speed | The SFS-CU140-305 produces wall frames, trusses and joists for residential and light commercial building quickly economically |
| Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists | An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.5mm |
| High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency |
| High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Self developing control system base on the market feedback that can meet your requirement well & with good after sales support |
IV. Machine Details
V. Profile Effect & Application
VI. Why Choose FrameTec
FrameTec- a specialized manufacturer of high-quality roll-forming equipment for constructing light steel frame structures & cold-formed steel structures.
Since 2009, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All Frametec machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Wall Panels, Trusses and Floor Joists in:
- Residential and Commercial buildings
- Steel framed systems for modular & prefabricated buildings
- Walls framed for low and high rise buildings
- Walling, floors, beams, roofing, kitchen & bathroom pods
- Storage, recreational, transportable dwellings
FrameTec, the intelligent manufacturing solution provider for multi-storey prefabricated buildings !
